城南支所

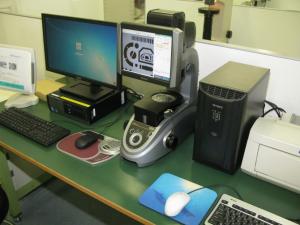

城南支所簡易型画像測定器
最終更新日2026年3月29日
- 用途
二次元の寸法・形状を測定
- 仕様
測定視野：広視野測定モード φ100mm ／高精度測定モード φ25mm
測定精度：広視野測定モード ±5μm ／高精度測定モード ±2μm
焦点深度：最大±10mm
機器概要
- 分類
- G：形状計測・カメラ：寸法・形状計測
- 担当部署
- 城南支所
- 導入年度
- 2012
- 型番
- コントローラ部IM-6500／ヘッド部 IM-6020
- 製造者
- キーエンス
料金表
設備利用'%3e%3cpath%20id='パス_322'%20data-name='パス%20322'%20d='M8,6.666A1.821,1.821,0,0,1,9.943,5H10.5a1.821,1.821,0,0,1,1.943,1.666,1.666,1.666,0,0,1-1.11,1.666,2.313,2.313,0,0,0-1.11,2.221'%20transform='translate(-8%20-5)'%20fill='none'%20stroke='%23324eb3'%20stroke-linecap='round'%20stroke-linejoin='round'%20stroke-width='1.5'/%3e%3cpath%20id='パス_323'%20data-name='パス%20323'%20d='M12,19v.006'%20transform='translate(-9.779%20-11.226)'%20fill='none'%20stroke='%23324eb3'%20stroke-linecap='round'%20stroke-linejoin='round'%20stroke-width='1.5'/%3e%3c/g%3e%3cg%20id='楕円形_100'%20data-name='楕円形%20100'%20transform='translate(2%202)'%20fill='none'%20stroke='%23324eb3'%20stroke-width='1.5'%3e%3ccircle%20cx='10'%20cy='10'%20r='10'%20stroke='none'/%3e%3ccircle%20cx='10'%20cy='10'%20r='9.25'%20fill='none'/%3e%3c/g%3e%3c/svg%3e){kind=small} | 試験項目 | 項目コード | 適用料金（税込） | |
|---|---|---|---|---|
| 中小 | 一般 | |||
| 機器利用 | （3）簡易型画像測定器 [1時間につき] | SC1311 | 940円 | 1,800円 |
