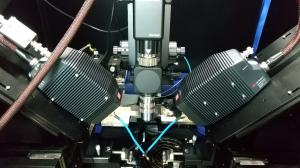

周波数エクステンダー/1mm同軸コネクターを用いた測定の様子
用途
増幅器、伝送線路、フィルタ、ウエハーなどの測定
仕様
周波数： 10 MHzから120 GHzまで
測定アプリケーション： Sパラメータ、タイムドメイン測定
ミリ波帯ベクトルネットワークアナライザと併せてのご利用となります。
